JCHS Series

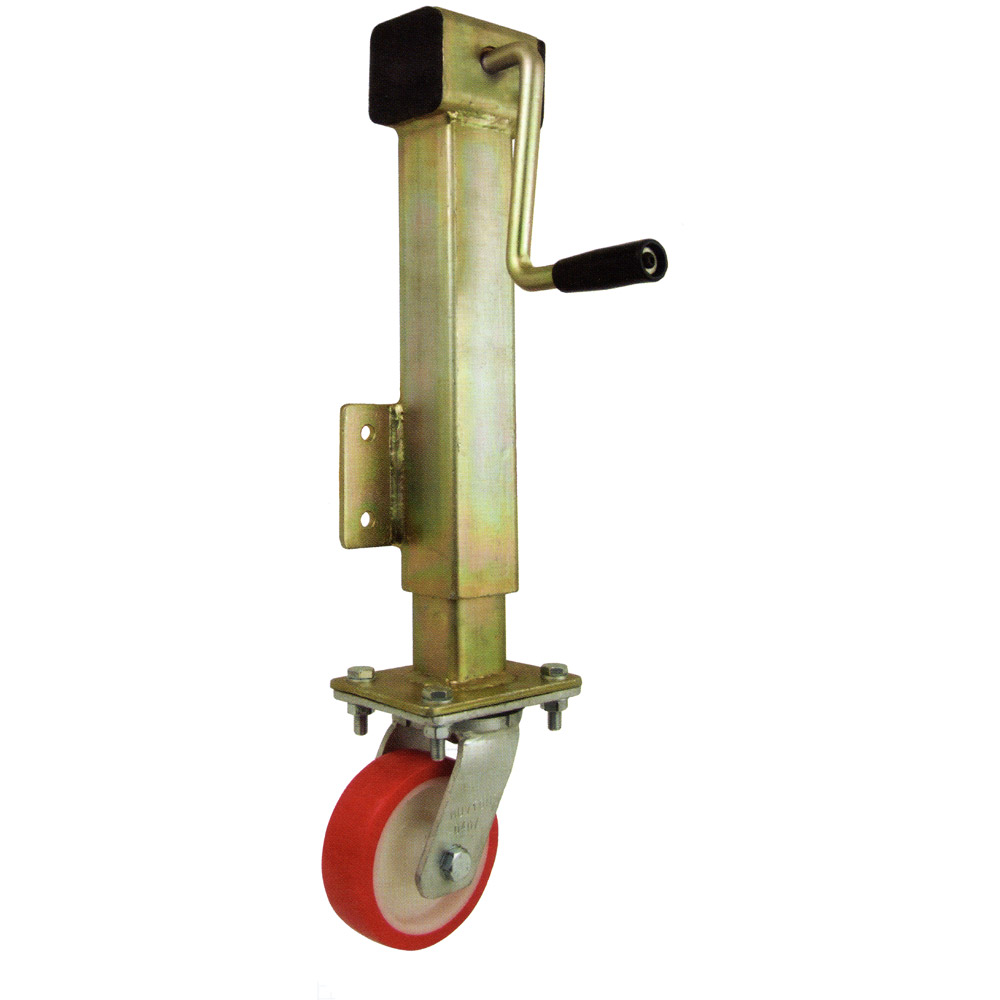

Heavy Duty Jack with Wind Up Handle

250mm Lift / Up to 1000kg Load

This Heavy Duty Jack with the wind up handle can be used in a variety of applications.

Quick to fit with just four bolts, and easy winding adjusting makes this a very versatile and ideal castor for applications where lifting is required.

Wheel diameters and types of your choice with load ratings up to 1000kg



Load Ratings

Jacking castors are rated on a different principle to other castors. They lift the load off the floor and therefore each castor is liable to carry half the total load. The minimum castor capacity required is obtained by taking...


Features

  • Wheel Type and Diameter of Choice
  • Up To 1000kg Load Capacities
  • 250mm Lift

Specifications

Please scroll the table left/right to see more information
Wheel Dia (mm) Overall Height (mm) Swivel Radius (mm) Tread Width (mm) Bolt Hole Ctrs (mm) Suits Bolt Dia (mm) Bearing Type Cat Ref- Nylon Cat Ref- Blue Elastic Tyre Nylon Centre Cat Ref- Black Painted Cast Iron Cat Ref- Polyurethane Tyre Nylon Centre Cat Ref- Polyurethane Tyre Cast Iron Centre
150 190 125 45 105 x 80 10 Roller JCHS150NYB 500kg JCHS150RNB 300kg JCHS150CIB 800kg JCHS150PNB 500kg JCHS150PTB 750kg
200 190 125 50 NY=45 105 X 80 10 Ball Bearing JCHS200NYBJ 1000kg JCHS200RNB 400kg JCHS200CIBJ 1000kg JCHS200PNBJ 650kg JCHS200PTBJ 1000kg

Can't find what you are looking for? Call us!

If you can't find exactly what you're looking for please give us a call, we may be able to help.
To get in touch please call 0115 989 9551 or email sales@reidsofnottingham.co.uk.
